- Computer Network Accessories
-
- » WALL-MOUNTED 19" CABINETS#04485
Wall-mounted 19" cabinet, 4.5U, steel door, 260 x 545 x 350 mm
Dimensions 4U 19",
260x545x350 mm,
(H x W x D)Type wall-mounted,
welded bodyDoor steel Cable entry top + bottom,
120x60mmMounting profiles 1 pair (front) Fa openings no Colour RAL 7035 (grey) Maximum load capacity 25kg Protection degree IP 20
#04499Wall-mounted 19" cabinet, 6U, steel door, 320 x 545 x 350 mm
Dimensions 6U 19",
320x545x350 mm,
(H x W x D)Type wall-mounted,
welded bodyDoor steel Cable entry top + bottom Mounting profiles 1 pair (front) Fan openings no Colour RAL 7035 (grey) Protection degree IP 20

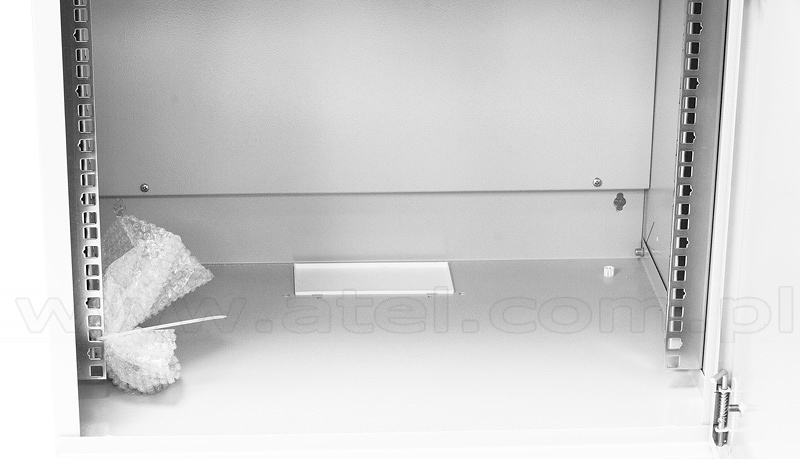

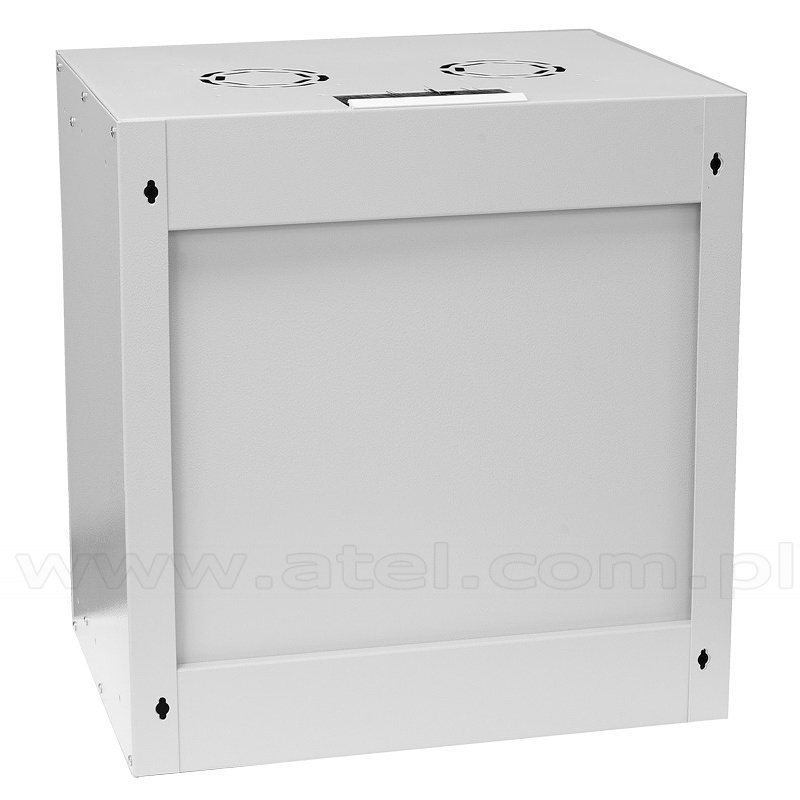

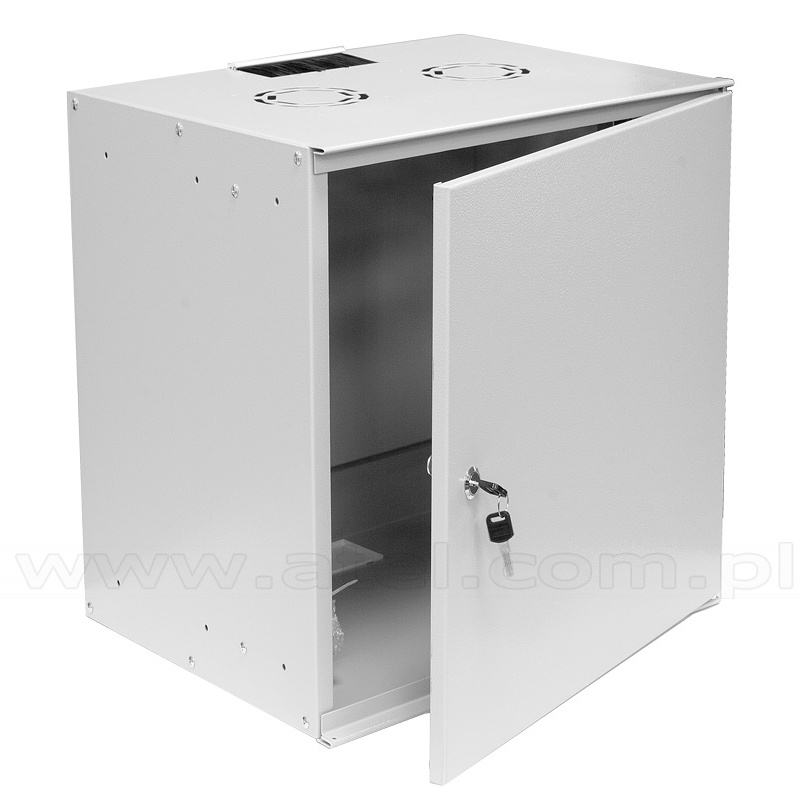

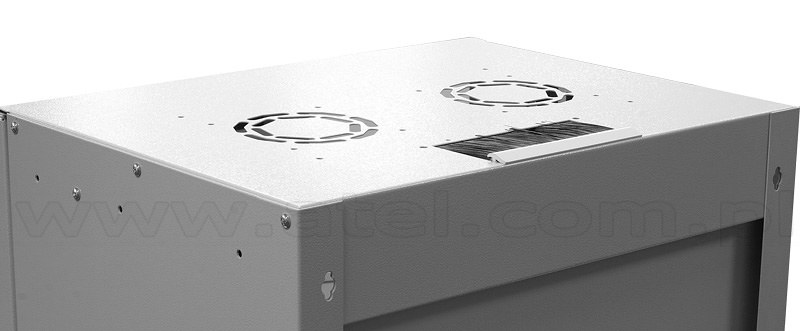

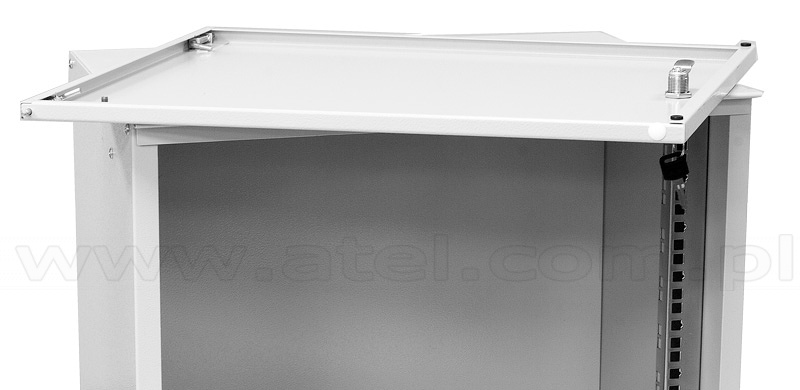

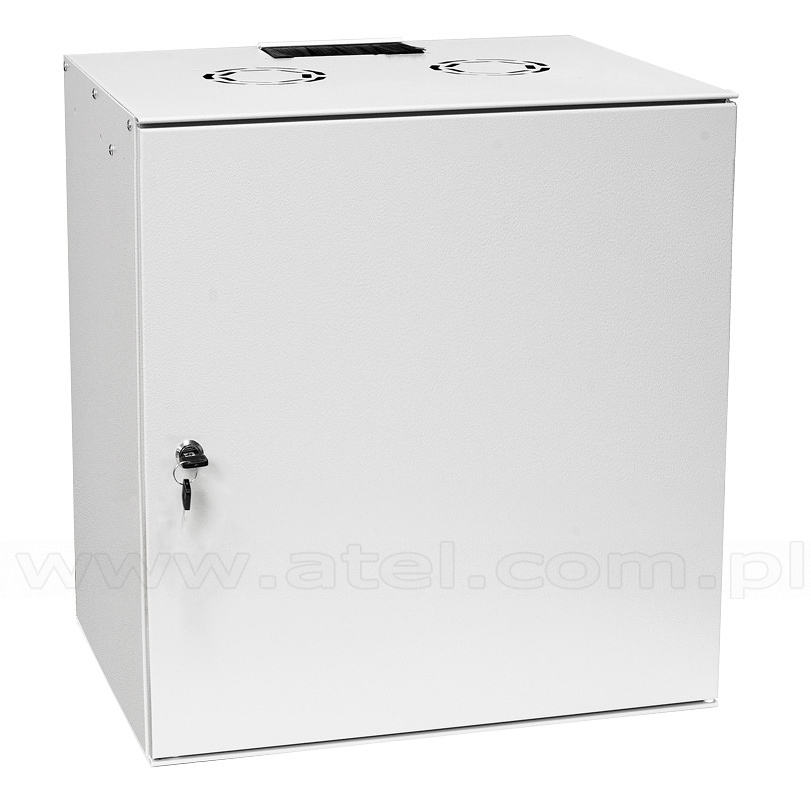

#02573Wall-mounted 19" cabinet, 12U, steel door, 580 x 520 x 400 mm
The 19" 12U cabinet with metal doors and a depth of 400mm is a durable and compact solution, perfect for smaller spaces. It features integrated holes and easy installation and is compatible with most standard devices. The metal doors provide protection and security.Dimensions 12U 19",
580x520x400 mm,
(H x W x D),
350mm wotking depth,
(distance from bars to rear panel)Type wall-mounted Door steel Cable entry top + bottom Mounting profiles 1 pair (front) Fan openings yes Colour RAL 7035 (grey) Protection degree IP 20 Additional equipment 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting
#04961Wall-mounted 19" cabinet, 12U, glass door, 580 x 520 x 400 mm
Wall-mounted rack cabin with a 12U working height and a depth of 300mm from the mounting bars to the rear wall of the cabinet.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.Dimensions 12U 19",
580x520x400 mm,
(H x W x D),
300mm working depth,
(distance from bars to rear panel)Type wall-mounted,
welded bodyDoor 4mm toughened glass Cable entry top + bottom Mounting profiles 1 pair (front) Fan cut-off yes Colour RAL 7035 (grey) Protection degree IP 20 Additional equipment 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting
#04962Wall-mounted 19" cabinet, 6U, glass door, 355 x 600 x 600 mm
Wall mounted rack cabinet with a 6U working height and 500mm width between the mounting bars.
Glass doors, removable sides and cable openings both at the top and the bottom make installation and usage of the cabinet easier.Dimensions 6U 19",
355x600x600 mm,
(H x W x D),
500mm working depth (distance from the bars to the back wall)Type wall-mounted,
welded bodyDoor 4mm toughened glass Cable entry top + bottom Mounting profiles 1 pair (front) Fan openings yes Colour RAL 7035 (grey) Protection degree IP 20 Additional equipment 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting
#05584Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 440 mm
Wall-mounted rack cabin with a 9U working height and a depth of 370mm from the mounting bars to the rear wall of the cabinet.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.Dimensions 9U 19",
480x600x440 mm,
(H x W x D),
370mm working depth,
(distance from bars to rear panel)Type wall-mounted,
welded body,
removable sidesDoor 4mm toughened glass Cable entry top + bottom,
50 x 260mmMounting profiles 1 pair (front) Fan openings yes Colour RAL 7035 (grey) Protection degree IP 20 Additional equipment 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting Recommended accessories:
#04475 Punched shelf, 19", 200 mm, 1U
#02502 Patch panel, 24-port, UTP, cat. 5e, 1U, 19", Krone type, w/cable holder
#07798 Power distribution unit, 19" rackmount, 9 outlets, on/off switch, 1.8m
#02584 Bolt + nut for 19" cabinet, 4pcs
Also available in black color:
#03514 Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 440 mm, black
#03514Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 440 mm, black
Wall-mounted rack cabin with a 9U working height and a depth of 370mm from the mounting bars to the rear wall of the cabinet.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.Dimensions 9U 19",
480x600x440 mm,
(H x W x D),
370mm working depth,
(distance from bars to rear panel)Type wall-mounted,
welded body,
removable sidesDoor 4mm toughened glass Cable entry top + bottom,
50 x 260mmMounting profiles 1 pair (front) Fan openings yes Colour RAL 9005 (black) Protection degree IP 20 Additional equipment 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting
#04929Wall-mounted 19" cabinet, 6U, glass door, 355 x 600 x 540 mm
Wall-mounted rack cabinet with a 6U working height. Glass doors, removable sides and cable openings both at the top and the bottom make installation and usage of the cabinet easier.Dimensions 6U 19",
355x600x440+100mm,
(H x W x D)Type wall-mounted,
welded body,
removable sidesDoor 4mm toughened glass Cable entry top + bottom (260 x 50 mm) Mounting profiles 2 pairs (first section front & back) Fan openings yes Colour RAL 7035 (grey) Protection degree IP 20 Additional equipment 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting
#04963Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 600 mm
Wall-mounted rack cabin with 9U working height and a depth of 500mm from the mounting bars to the rear wall of the cabinet.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.Dimensions 9U 19",
480x600x600 mm,
(H x W x D),
500mm working depth,
(distance from bars to rear panel)Type wall-mounted,
welded body,
removable sidesDoor 4mm toughened glass Cable entry top + bottom,
50 x 260mmMounting profiles 1 pair (front) Fan openings yes Colour RAL 7035 (grey) Protection degree IP 20 Additional equipment 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting Recommended accessories:
#04475 Punched shelf, 19", 200 mm, 1U
#02502 Patch panel, 24-port, UTP, cat. 5e, 1U, 19", Krone type, w/cable holder
#07798 Power distribution unit, 19" rackmount, 9 outlets, on/off switch, 1.8m
#02584 Bolt + nut for 19" cabinet, 4pcs
Also available in black color:
#03513 Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 600 mm, black
#03513Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 600 mm, black
Wall-mounted rack cabin with 9U working height and a depth of 500mm from the mounting bars to the rear wall of the cabinet.
Glass doors, removable sides and cable openings both at the top and at the bottom make installation and usage of the cabinet easier.Dimensions 9U 19",
480x600x600 mm,
(H x W x D),
500mm working depth,
(distance from bars to rear panel)Type wall-mounted,
welded body,
removable sidesDoor 4mm toughened glass Cable entry top + bottom,
50 x 260mmMounting profiles 1 pair (front) Fan openings yes Colour RAL 9005 (black) Protection degree IP 20 Additional equipment 3 sets of fixing screws in the holes of the supporting rails and a set of four screws for wall mounting Recommended accessories:
#04475 Punched shelf, 19", 200 mm, 1U
#02502 Patch panel, 24-port, UTP, cat. 5e, 1U, 19", Krone type, w/cable holder
#07798 Power distribution unit, 19" rackmount, 9 outlets, on/off switch, 1.8m
#02584 Bolt + nut for 19" cabinet, 4pcs
Also available in grey color:
#04963 Wall-mounted 19" cabinet, 9U, glass door, 480 x 600 x 600 mm
-
