#03808
Testing devicesNOYAFANF-8601W

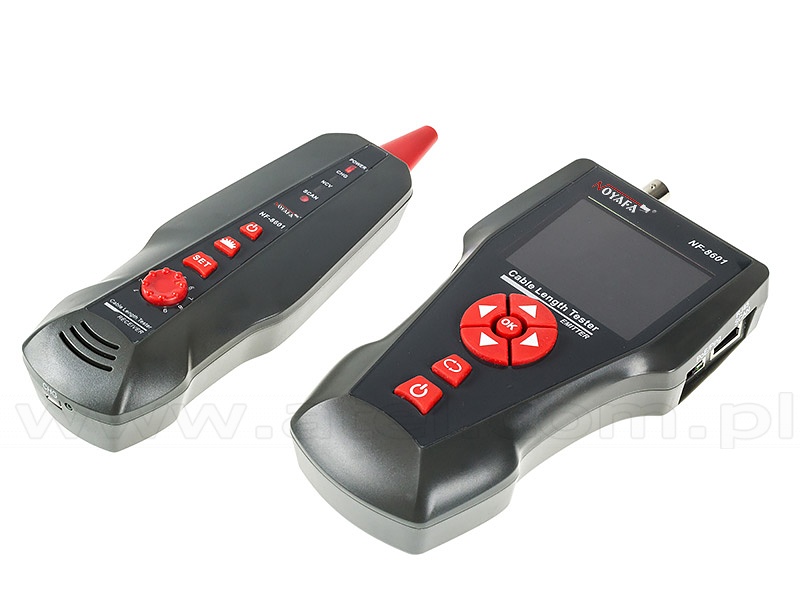

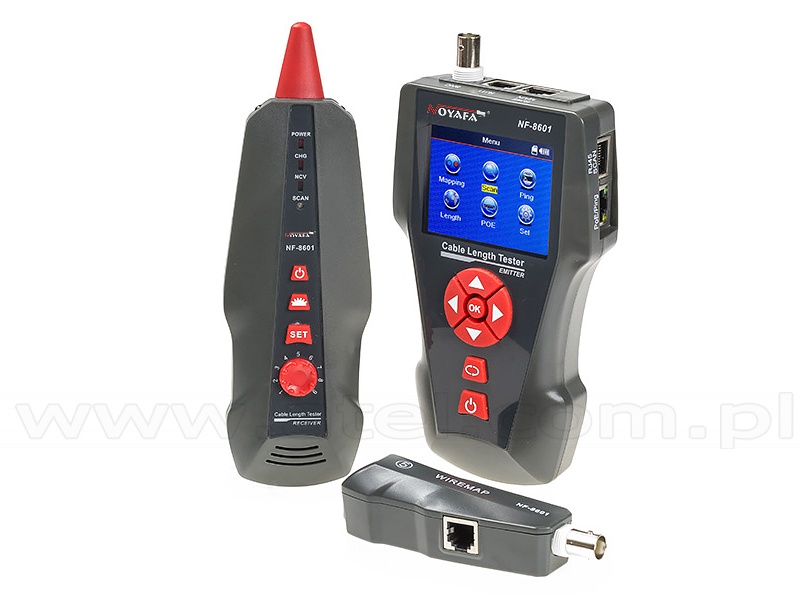

Cable tester RJ-45, w/LCD, wire tracker, ping testing (NOYAFA NF-8601W)

Advanced cable tester thet performs PING, PoE, wiremap and length tests. The other benefits are large colour LCD display and data export to micro SD card.

The device is equipped with a clear, backlit LCD display.

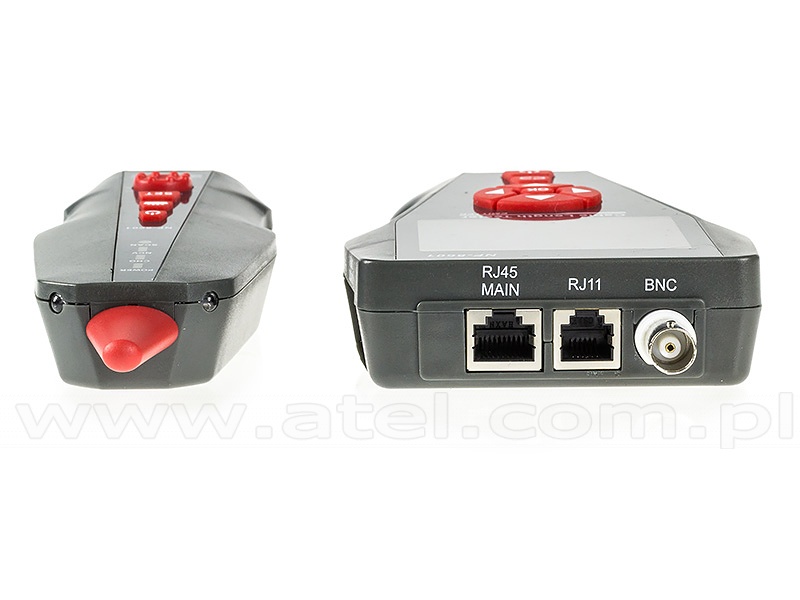

Tested cabling RJ45,
RJ11,
BNC
Functionality location of the damage site,
cable length measurement,
detection of short circuit; interruptions; reverse connections,
measurement of the distance to damage,
dynamic calibration of cable lenght measurement,
temperature compensation,
sound signaling,
terminator identification
Wiring tests cable lenght,
connection map,
digital pair finder with generator,
LAN testing ICMP ping
Cable length measurement 10÷1000m
Setting the electric capacity of the tested cable yes
Measurement of the distance to damage yes
Ping test delay,
lost packets
Ergonomics big and clear LCD display (320x240 pixels),
automatic shutdown,
long operating time,
export of measurement data to a micro SD card
Power in-built battery,
micro USB charging
Dimensions 173x92x34 mm (main),183x58x35 mm (reciever)
Warranty 12 months
Manufacturer NOYAFA

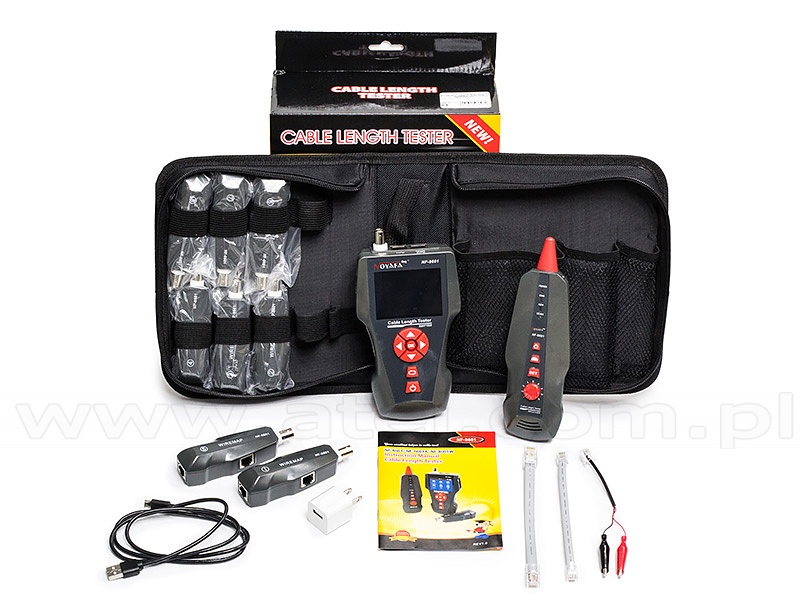

The kit includes:
- main unit,
- wire pair tracker,
- USB A (M) - micro USB (M) connector,
- crocodile clips,
- RJ45-RJ45 and RJ11-RJ11 connectors,
- terminators numbered from 1 to 8,
- case.

User Manual (7,71 MB)
Configuration/Applications

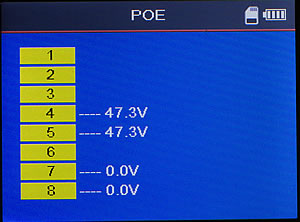

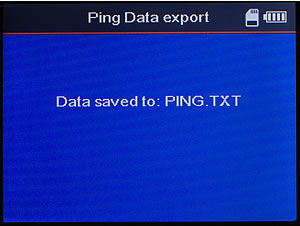

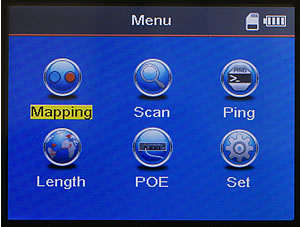

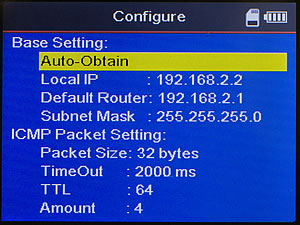

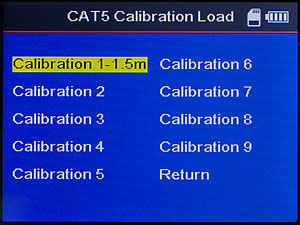

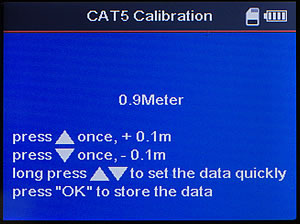

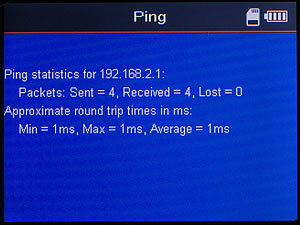

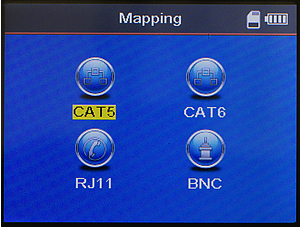

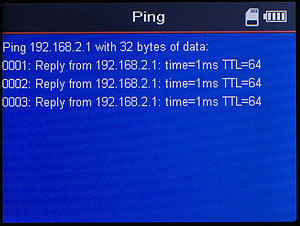

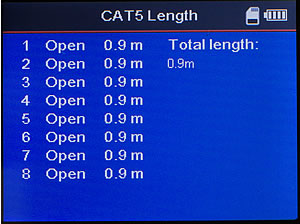

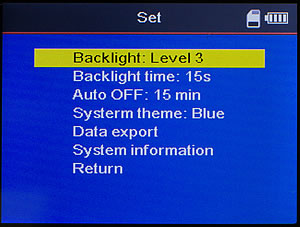

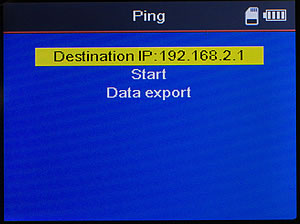

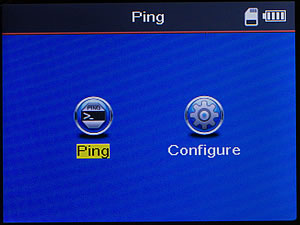

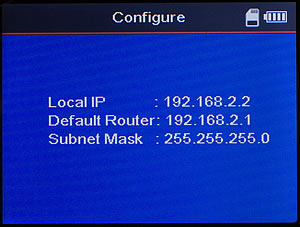

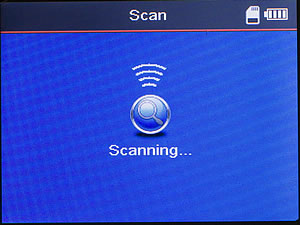

NF-8601W - Main menu NF-8601W - Mapping menu NF-8601W - CAT5 Mapping NF-8601W - Length menu NF-8601W - CAT5 Length NF-8601W - Length Calibration NF-8601W - Calibration Load menu Scan Ping - menu Ping settings Ping Ping Ping - Data export Ping - Configure Ping - menu POE test Main Settings
